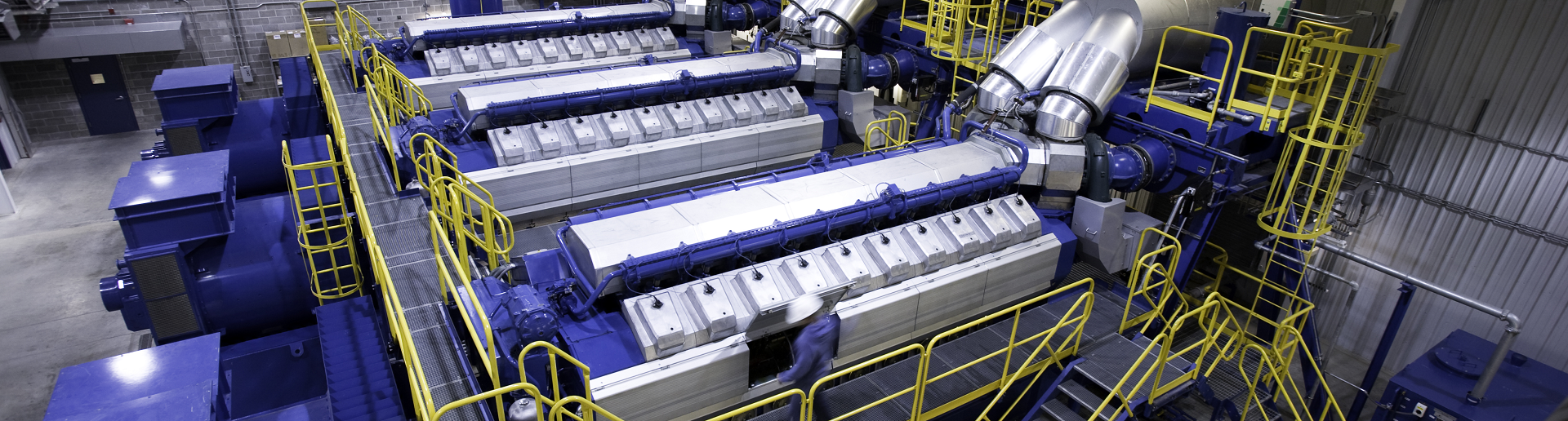

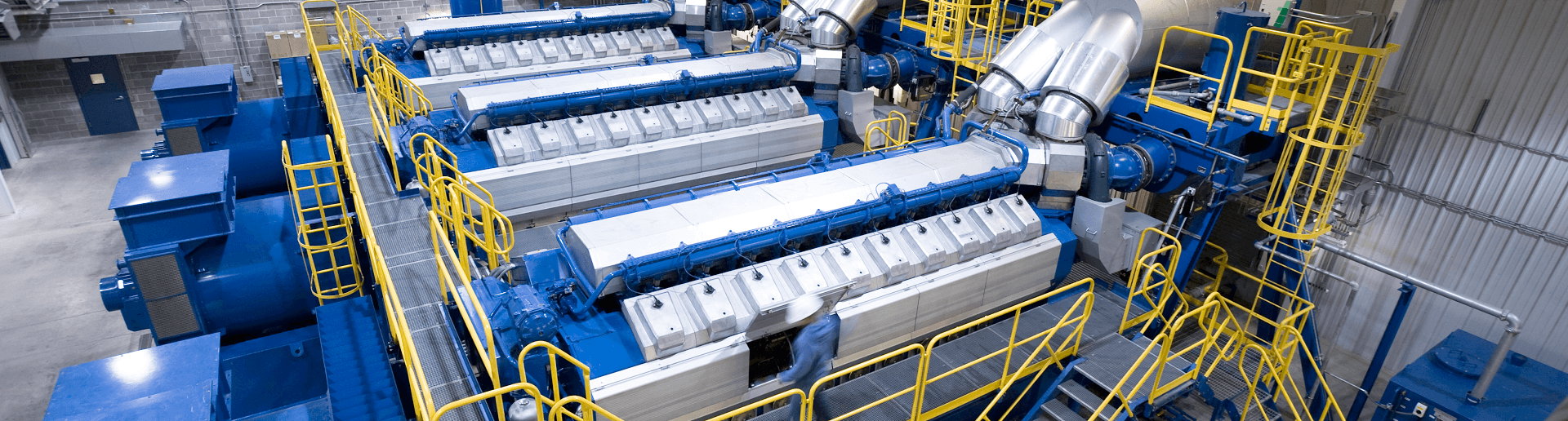

W34SG_engine_room_1920x516

Modesto District + Wärtsilä

Integrating wind and solar power with Wärtsilä balancing solutions

The state of California is known for its amazing nature and climate. Being home to beautiful beaches, sandy deserts and redwood forests alike, it is hard to find a corner of the planet with comparable natural and climatic diversity. It is certainly called the Golden State for a reason! But to keep it golden, its inhabitants and regulators are very aware that its fate cannot be left to chance. Climate change is a real threat, and biological degradation could pose a serious risk to an agricultural region that feeds well over 100 million people.

At the forefront of environmental regulation worldwide, Californians have pioneered almost  every piece of legislation aiming to keep pollution in check and natural resources plentiful. Binding targets for increasing renewable capacity, stricter-than-anywhere limitations to power plant emissions, a ban on wasteful cooling systems in power generation.

The Modesto Irrigation District (MID hereafter), a community-owned utility dedicated to supplying a reliable stream of water and power to the city of Modesto and its surroundings, has been operating since 1887. In the year 2011, the growing power needs made it necessary for MID to enlarge its locally-owned power generation portfolio, then consisting of roughly 150 MW of baseload power capacity, supplied by combined cycle gas turbines and hydro plants; plus another 200 MW of peaking capacity, supplied by simple cycle gas turbines.

In order to ensure that renewable energy intermittency was not an issue, MID acquired a state-of-the-art Wärtsilä plant, powered by six fast-start Wärtsilä 20V34SG gas engines, providing up to 50 MW. The Woodland 3 Generation Station, as it was named, can supply anywhere from 4 to 50 MW to the grid in less than 8 minutes, based on the real-time needs, and all of it without any loss in efficiency. The plant can withstand multiple starts and stops without any extra cost or impact on maintenance, which makes it much more effective at responding to intermittency issues.

Not only have the Wärtsilä units complemented MID’s intermittent renewable resources, they have also helped optimise the efficiency of MID’s entire generation portfolio. Their operation either offsets the use of simple cycle turbines (which have a significantly lower efficiency) for peaking power needs; or provides the load-following capability that would otherwise be provided by a combined cycle plant. Rather than turning to combined cycles for fast ramp needs, which would imply a significant efficiency loss, the Wärtsilä engines take care of the quick-starting and fast load ramps needed while the combined cycle plants are used more to serve the base-load needs for which they are better suited.

WHOMODESTO IRRIGATION DISTRICT (MID)
WHAT50 MW WOODLAND 3 GENERATION STATION
WHEREMODESTO, CALIFORNIA, USA
HOW6X20V34SG



This is what we achieved

50MW

Of electrical output supporting local power grid.

8'

and less, to synchronise the plant to the grid.

6X

W20V34SG to support  demanding load peaks and ramps.

How we did it

Challenge icon

Challenge

  • Demand variation
  • Intermittency of wind and solar power
  • Total portfolio optimization
Solution icon

Solution

  • Multi-unit approach allows to supply any amount of power without efficiency loss
  • Wärtsilä internal combustion engines with excellent dynamic capabilities
  • Wärtsilä 34SG engines taking care of demanding load peaks and ramps
Benefit icon

Benefit

  • Enhanced reliability, significant fuel savings and lower electricity price for consumers
  • Operational flexibility & supply security
  • Existing assets can run more efficiently and generating less emissions

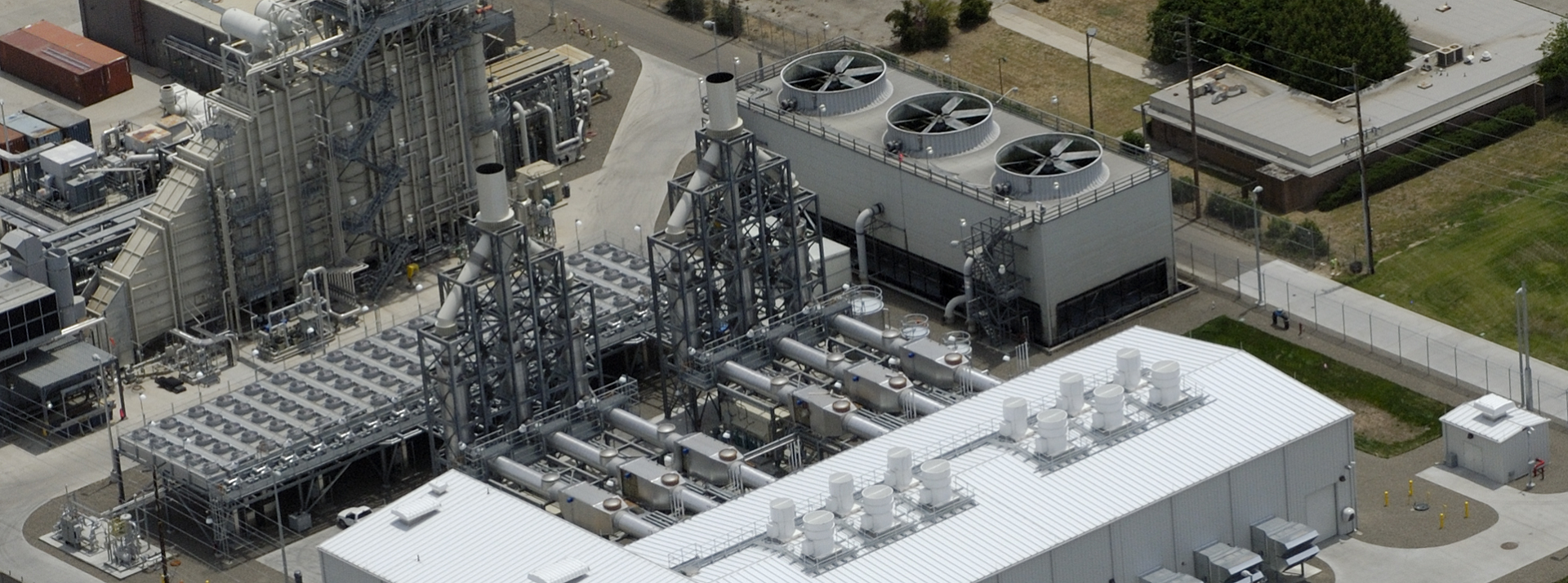

Modesto_Woodland3_1920x714

The main details

 CUSTOMERMODESTO IRRIGATION DISTRICT (MID)
TYPEWÄRTSILÄ 20V34SG PEAK LOAD/STAND-BY & EMERGENCY POWER PLANT
WHEREMODESTO, CALIFORNIA, USA
TOTAL OUTPUT50 MW
FUELNATURAL GAS
SCOPEENGINEERING & EQUIPMENT (EEQ)
DELIVERY2011



Modesto_Woodland3_US_map
