Navi-Radar is fully integrated with Navi-Sailor ECDIS and its navigational data for the best situational awareness. Built on the Fleet Operations Solutions (FOS) software platform, it perfectly integrates a connected ECDIS and radar. It allows for remote troubleshooting from ashore to ensure up-time. Radar data and target information are shared via a Type Approved cyber-secure connection to the Fleet Operation Centre and is available ashore for investigation. Navi-Radar helps increase safety through a clear situation picture due to the radar overlay function and easy integration into the Navi-Sailor ECDIS using the same user interface.
Navi-Radar 4000 MFD is designed in full compliance with the latest IMO, IHO and IEC standards and resolutions. NR 4000 is a PC-based radar system with advanced ARPA, AIS and Chart Radar facilities.
Wärtsilä Navi-Radar is type approved and is available in the following X and S-band configurations:

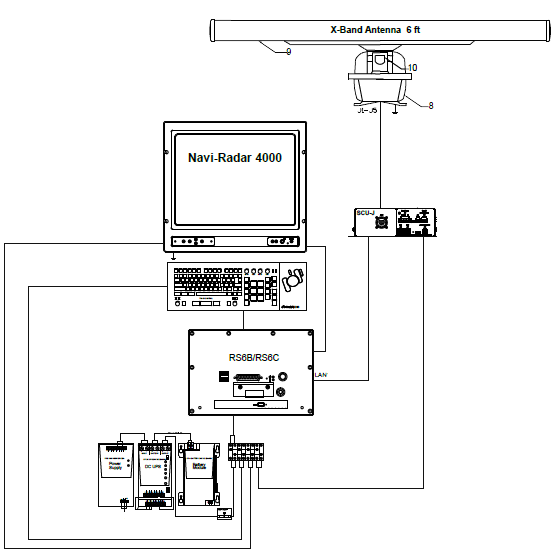

NR 4000 Premium 19/24 CAT2 or 26 CAT1 10kW X-band 24VDC incl. PM and 6ft. Antenna

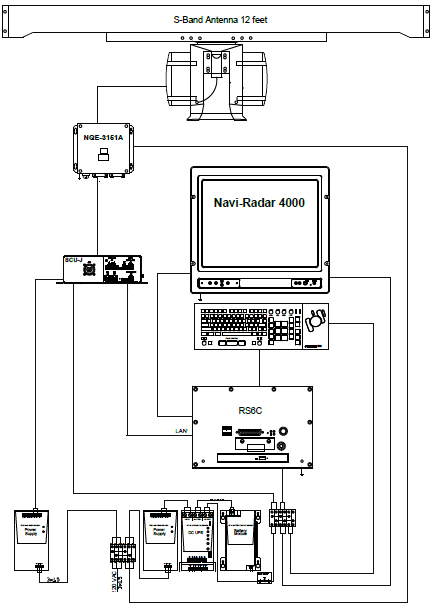

NR 4000 Premium 19/24 CAT2 or 26 CAT1 30kW S-band 220VAC incl. PM and 12ft. Antenna
