Wärtsilä 50DF dual fuel engine for power plants

Wärtsilä 50DF dual fuel engine

The Wärtsilä 50DF dual fuel engine is a four-stroke dual fuel engine generating set. It allows instant switching to alternative fuels, should price instability or delivery challenges affect the use of the primary fuel.

Download leaflet

The Wärtsilä 50DF dual fuel engine operates on the lean burn principle, which reduces peak temperatures and lowers NOx emissions considerably. High efficiency in a small footprint combined with great reliability and flexibility makes this solution ideal for various applications. Wärtsilä engine power plants can be delivered both as EPC and Equipment Delivery contracts.

Key benefits of the Wärtsilä 50DF dual fuel engine

Ensures energy security in operation through fuel flexibility and seamless switching between fuels
Can operate on natural gas or any liquid fuel, including HFO
Low emissions in gas mode meets even the most stringent emission limits

Robust, reliable genset, proven in the most challenging environments
Fast-starting capability which enables rapid response to fluctuations

Optimised performance and reliability supported by Wärtsilä Lifecycle solutions »

Customer stories

AGL Energy Limited, Australia Barker Inlet Power Station

A step ahead Down Under – 211 MW Dual Fuel flexible power plant ensuring reliability in the renewable-heavy South Australian power system.
Read more
PLTD Pesanggaran, Bali

Grid stability in Indonesia – 200MW multi-fuel power plant generating reliable electricity in Bali with operational and fuel flexibility.
Read more
Marquette Energy Center, USA

When the temperature drops to –40 degrees Celsius, blackouts are not an option. In order to secure a reliable energy supply and enable more renewable energy, Marquette Board of Light and Power (MBLP) in Michigan, USA, opted for Wärtsilä.
Read more

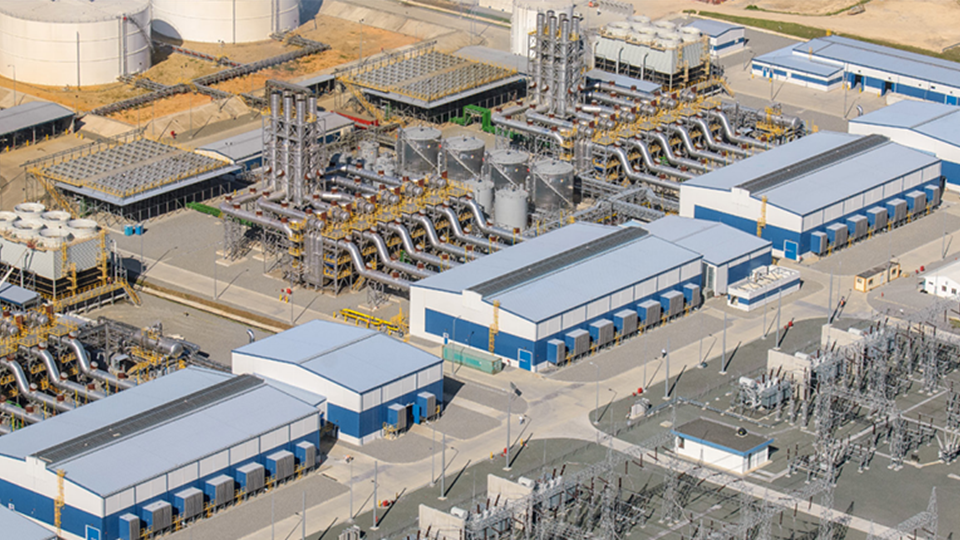

Quisqueya I & II, Dominican Republic

In September 2011, Barrick Gold Corporation acquired a majority share in a gold mine located some 100 kilometres from the Dominican capital, Santo Domingo. The mining company quickly placed an order for a state-of-the-art Wärtsilä power plant to satisfy the needs of their new power-hungry mine
Read more

Our proudest numbers

30 sec

Connection to grid

49.4%

Electrical efficiency

5 000

kW Installed capacity

Questions? Contact us

The details

Technical data

Wärtsilä 50DF dual fuel engine - Engine generating set
Cylinder configurations	18V
Cylinder bore	500 mm
Piston stroke	580 mm
Engine speed	500 rpm (50 Hz), 514 rpm (60 Hz)
Performance *
	18V50DF
Rated electrical power (kW)	17 635 (50Hz) 18 190 (60Hz)
Electrical efficiency (%)	GAS: 49.4 (50Hz) 49.3 (60Hz)	LFO: 48.2 (50Hz) 47.7 (60Hz)
Heat rate (kJ/kWh)	GAS: 7 285 (50Hz) 7 305 (60Hz)	LFO: 7 474 (50Hz) 7 545 (60Hz)
Loading and unloading
	Connected to grid	Full load
Regular start time (min:sec)	00:30	< 5
Fast start time (min:sec)	00:30	< 2
Stop time (min)	1
Ramp rate (hot, load/min)	> 100%
Minimum Load
Unit level	10%
Plant level	1%

* Rated electrical power and electrical efficiencies are given at generator terminals at 100kPa ambient pressure, 25°C suction air temperature and 30% relative humidity, and without engine driven pumps. Power factor 1.0 (site). Electrical efficiency with 5% tolerance. Site conditions, fuel and applicable emission limits may have an impact on performance figures. Please contact Wärtsilä for project-specific performance data. Catalyst systems are designed based on project specific requirements. Certain fuel components are poisonous for catalyst elements. Maximum amount of these components to be limited in the fuel in applications where catalyst system is installed.

Disclaimer: The information contained herein is provided for informational purposes only and may not be incorporated, in whole or in part, into any agreement or proposal. No representation of any kind is made in respect of any information contained herein and Wärtsilä expressly disclaims any responsibility for, and does not guarantee, the correctness or the completeness of the information. The calculations and assumptions included in the information do not necessarily take into account all the factors that could be relevant in a particular case. Information herein shall not be construed as a guarantee or warranty of the performance of any Wärtsilä technology, equipment or installation.

Product leaflet

Wärtsilä 50DF dual fuel engine - leaflet
