WSD 85 : Multipurpose Heavy Lift Vessel

Home

Marine

References

Special vessels

Special vessels references

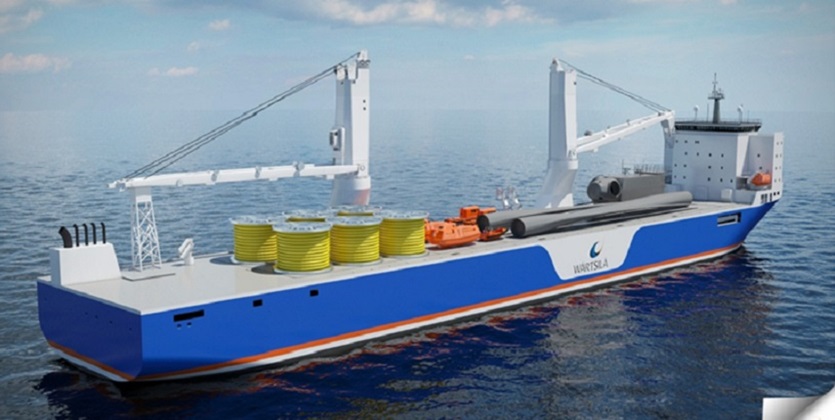

22,000 dwt Heavy lift vessel designed to carry a wide diversity of cargo types including containers, steel coils, bulk cargo and grain.

The vessel is arranged with a single cargo hold with possibility of variable subdivision, unobstructed main deck space and combined crane capacity up to 1,600t, offers a wide operational flexibility depending on the mission.

Wärtsilä scope of supply

Wärtsilä 6RT-flex50, output of 10,470 kW at 124 rpm
3 x Wärtsilä Auxpac 6L20, output of 1,050 kW kW at 900 rpm
Wärtsilä Controllable Pitch Propeller Systems
Wärtsilä Energopac
Wärtsilä Propulsion Control Systems
Wärtsilä Seals & Bearings

Additional

Features

Large single cargo hold, reinforced for carrying heavy cargo, with flexible horizontal subdivision at three (3) positions throughout the hold
Flush weather/cargo deck
Stability pontoon assembled from twin deck panels
Forward accommodation for maximized cargo flexibility and better visibility
Inherent crew comfort by segregation of deckhouse and engines/propeller
Equipped with 2 x 800 t heavy lift mast cranes: capacity 800 t @ 20 m outreach, 500 t @ 32 m outreach each

Name	WSD 85
Type	Multipurpose heavy lift vessel
Deadweight	22,000 dwt
Cargo hold volume	31,300 cbm
Lenght	176.30 m
Breadth	28.00 m
Scantling draft	9.50 m
Service Speed	15 knots
