Renewable optimisation and efficiency in the Southeastern USA

Co-optimising hardware and software solutions for utility-scale solar-plus-storage

With increasing opportunities to connect energy assets with energy markets, renewable energy developers are pursuing solutions that improve performance and yield higher returns.

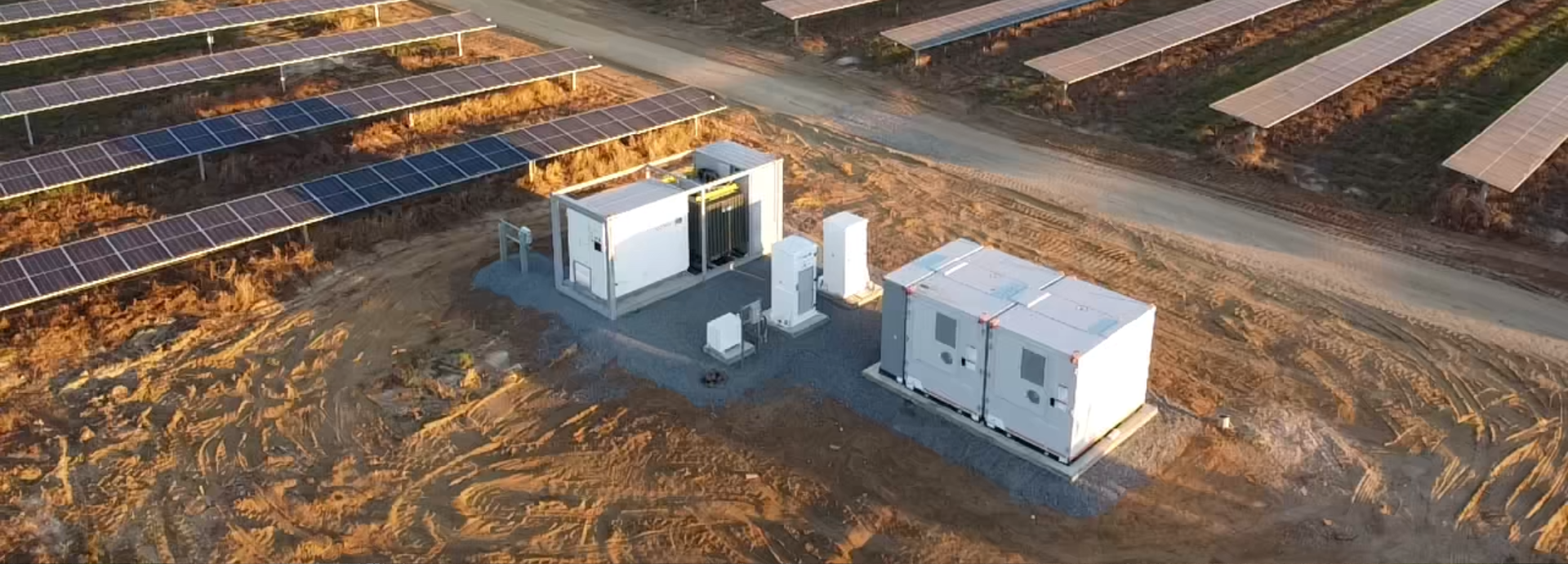

The 40 MW / 80 MWh solar-plus-storage Hickory Park facility recently commissioned by Wärtsilä in Georgia, USA, serves as a great example of this co-optimisation between hardware and software. The facility is located in a vertically integrated electricity market and uses features that can be repurposed for wholesale electricity market participation.

Advanced DC-coupled solar-plus-storage system

This project is Wärtsilä’s first DC-coupled system with the Quantum solution, a fully integrated modular energy storage system. The DC-coupled configuration increases energy delivery during peak demand and enables RWE Renewables to sell nearly 200 MW of solar generation onto the grid.

With DC-coupled solar-plus-storage systems, solar generation flows directly to the battery, via a cost-efficient DC/DC converter, and avoids conversion losses from an inverter. As a result, DC-coupled systems are up to 3% more efficient than conventional AC-coupled systems.

The flexibility and broad capabilities of the GEMS Digital Energy Platform enable effective and efficient control over the entire system.

Who	RWE Renewables
What	40 MW / 80 MWh
Where	Georgia, USA

This is what we achieved

MW of energy storage capacity

MWh of energy storage capacity

This is a milestone project for the integration of solar PV and energy storage and is one of the only facilities globally using DC-coupling on this scale. The flexibility and broad capabilities of the GEMS platform enable effective and efficient control over the entire system, which is essential for optimising this 80 MWh project utilising the GridSolv Quantum energy storage system.

How we did it

Challenge

Provide cost-competitive dispatchable power that meets day ahead Power Purchase Agreement (PPA) requirements specified by the local off-taker
Integrate a portfolio of energy assets, including 200 MW of solar generation and 40MW of energy storage
Integrate DC converters and solar inverters to ensure seamless energy generation

Solution

Delivered a DC-coupled solar-plus-storage system, which increases energy dispatchability during peak demand times and facilitates the integration of renewable energy into the grid
Provided forecast-based day-ahead commitments and real time dispatch optimisation for value-based asset management that stacks applications: solar firming, DC solar PV clipping recovery, and excess solar energy recovering
Designed and engineered a sophisticated hardware and software solution that included lab integration testing and field testing to ensure system performance and reliability

Benefit

Streamlined system design resulting in lower hybridised balance-of-plant costs
Dynamic PPA optimisation, including real-time visibility into and leveraging of automated and forecasted data to maximise revenue for the portfolio assets
Greater system efficiencies for improved energy yield and dispatch

Questions? Contact us

The main details

Customer	RWE Renewables
Site size	40 MW / 80 MWh
Site location	Georgia, USA
Application(s)	Renewables+, PPA Optimisation with day-ahead commitments
Scope of services	Engineering equipment delivery (EEQ)
Delivery	2021
