Wärtsilä Wireless big-end bearing temperature monitoring

Contact us

Wärtsilä Wireless big-end bearing temperature monitoring

A big-end bearing seizure can have expensive consequences for an engine and for your business. The Wärtsilä Wireless big-end bearing temperature monitoring system provides real-time temperature monitoring of the connecting rod big-end bearings. If the temperature exceeds acceptable limits, it enables preventive actions to be taken to avoid expensive repairs and lost revenue.

In the worst-case scenario a big-end bearing seizure can lead to complete engine failure. For example, the crankshaft can be damaged to the extent that it needs to be replaced altogether. The Wärtsilä Wireless big-end bearing temperature monitoring system provides crew with real-time data on the big-end bearing temperature and enables automatic load reduction and shutdown in case of big-end bearing temperature deviation.

For more information about the retrofit, fill in the contact form and our sales will get in touch with you.

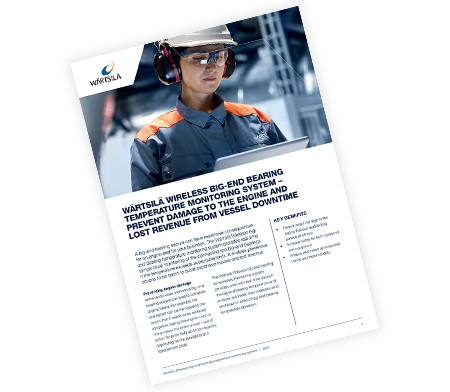

Wireless big-end bearing brochure

Key benefits

  • Prevent major damage to the engine that can lead to long periods of off hire
  • Increase safety for both personnel and equipment
  • Analyse and follow up measured trends and historical data



Download leaflet

    Technical info

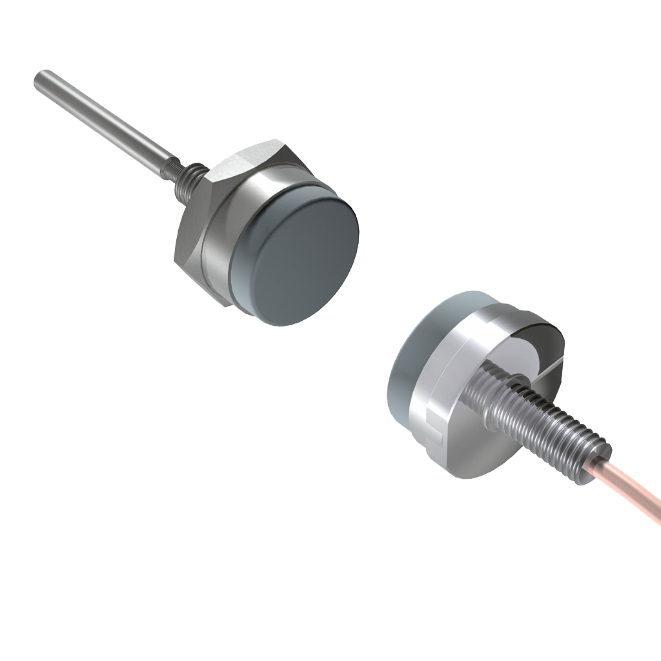

    The system consists of a wireless temperature sensor with one stationary antenna per cylinder and one or more signal processing units. The temperature sensor is installed in the connecting rod, while the stationary antenna is installed in a suitable place inside the engine crankcase. A coaxial cable connects to the signal processing unit. The unit can be connected to a standalone alarm and monitoring system or to the engine automation system.

    Wireless Big-end Bearing Monitoring

    Benefits

    • Prevent major damage to the engine that can lead to long periods of off hire
    • Increase safety for both personnel and equipment
    • Analyse and follow up measured trends and historical data
    Wireless Big-end Bearing Monitoring

    Application

    Wärtsilä 26, Wärtsilä 32, Wärtsilä 34, Wärtsilä 38, Wärtsilä 46, Wärtsilä 50, Wärtsilä Vasa 32, Wärtsilä Sulzer Z40
