• Oil lubricated carosel
    An anti-pollution and environmentally compliant solution

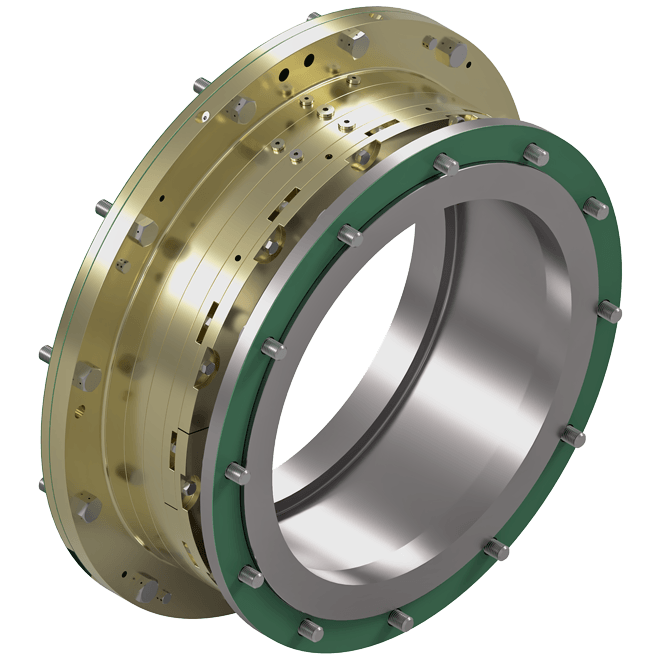

    Wärtsilä Airguard seal

Wärtsilä Airguard seal

Wärtsilä Airguard seal

The Wärtsilä Airguard is an anti-pollution lip type seal, which is especially designed for applications where extra security against the leakage of oil into the seawater is required. The Wärtsilä Airguard seal works with compressed air, which is applied to the void space between the seal rings. This constant flow of compressed air into the void space is automatically set higher than the seawater pressure, resulting in a small amount of air forced out into the seawater. The void space is connected to an inboard drain collection system. Any seawater or oil that infiltrates the void space is automatically drained inboard, preventing oil leaking outboard or seawater entering the stern tube. As the Wärtsilä Airguard seal successfully takes away the oil-to-sea interface, it can be operated with mineral oil in accordance with the 2013 Vessel General Permit.

Wärtsilä has developed a new solution based on the successful Wärtsilä Airguard technology, which offers vessel owners a smart way to upgrade almost every vessel type in a lean and cost-efficient way. Learn more.

Find out more about the Wärtsilä Airguard seal
