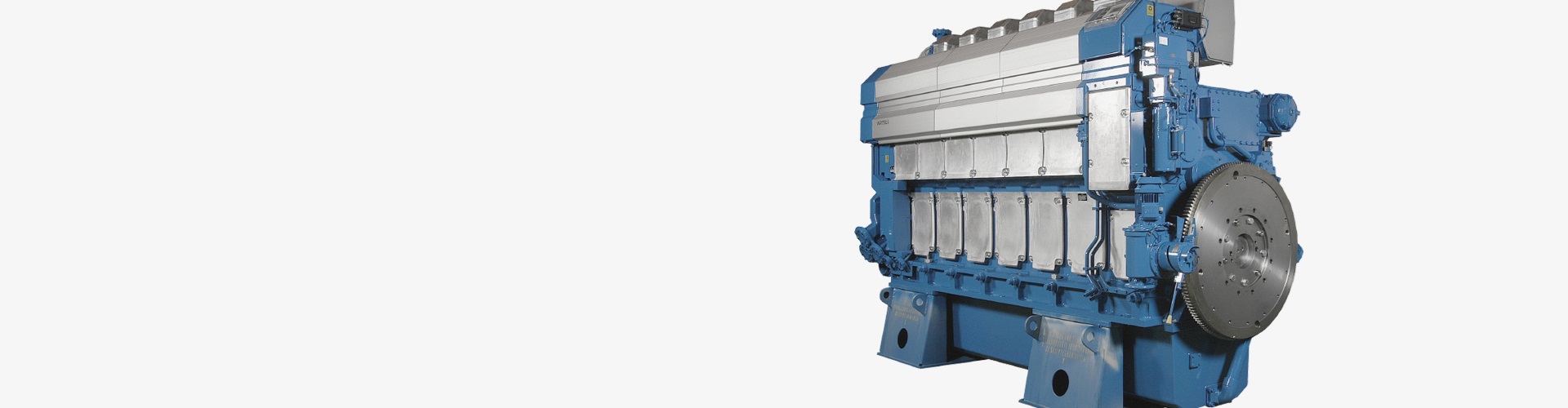

The Wärtsilä 32 was developed in response to a need in the market for a new engine in the 320 mm cylinder bore class and since 1998 more than 2500 of these engines have been sold to the marine market, in total more than 4500 Wärtsilä 32 bore engines have been delivered to the marine market since the 1980s.

Based on the latest achievements in combustion technology, it is designed for efficient and easy maintenance in combination with long maintenance-free operating periods. The engine is fully equipped with all essential ancillaries and a thoroughly planned interface to external systems.

The Wärtsilä 32 engine is fully compliant with the IMO Tier II exhaust emissions regulations set out in Annex VI of the MARPOL 73/78 convention.

ACCESS MARINE 3D MODELS & DRAWINGS
    Advantages

    Exellent fuel flexibility allowing operation on HFO, LBF, MDO and ultra low sulphur fuel. Low fuel oil consumption over a wide load range.

    Utmost power-to-weight and power-to-space rations in combination with a great flexibility in engine support arrangements allows optimised rigid or flexible installation for a wide range of vessel applications.

    Fast starting times and great load acceptance makes the Wärtsilä 32 a preferred choice in many offshore applications.

    High reliability and proven in service makes the Wärtsilä 32 an excellent choice for any application.

    Technical data
    Wärtsilä 32 IMO Tier II or III
    Cylinder bore 320 mm Fuel specification:
    Piston stroke 400 mm Fuel oil 700 cSt/50°C
    Cylinder output 580 kW/cyl 7200 sR1/100°F
    Speed 750 rpm ISO 8217
    Mean effective pressure 28.9 bar category ISO-F-RMK 700
    Piston speed 10.0 m/s SFOC 178,8 g/kWh at ISO cond.



    Rated power
    Engine type 580 kW/cyl
    6L32 3 480
    8L32 4 640
    9L32 5 220
    12V32 6 960
    16V32 9 280

    Dimensions (mm) and weights (tonnes)
    Engine type A* A B* B C D F Weight
    6L32 5570 5255 2432 2330 2371 2345 1155 35.4
     7L32  N/A 5745 N/A  2330 2371 2345 1155 38.2
    8L32 6550 6235 2432 2330 2371 2345 1155 44.6
    9L32 6917 6796 2457 2323 2594 2345 1155 48.7
    12V32 6875 6620 2516 2465 2900 2480 1475 62.0
    16V32 8041 7729 2516 2465 2900 2480 1475 76.5

    Wärtsilä 32

    * turbocharger at flywheel end
    Applications

    The Wärtsilä 32 can be installed in a vast range of applications such as drillrigs and ships, AHTS, PSV, dredgers, Fishing vessels, Tugs and Ferries.

    References

    •
      Voyager
      The Voyager is deployed in the Irish Sea. Pelagic trawlers are huge vessels built for deep sea fishing, with facilities for keeping the catch fresh over prolonged periods at sea. The hull is designed to ensure safety, and to give good fuel efficiency and high speed.
      Read more

      Voyager

    • Quantus
      The Quantus is a modern trawler designed and built for efficient fishing. The vessel incorporates a number of innovative ideas, including a new hull form designed to combine optimum steaming and towing characteristics with fuel efficiency.
      Read more

      Quantus

    • Arctia Offshore

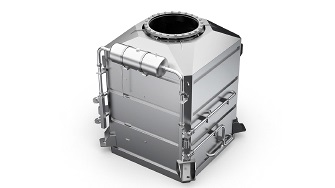

      The turnkey project involved the fitting of combined Wärtsilä NOx Reducer (NOR) and Oxidation Catalysts (OXI) to the MSV Fennica and MSV Nordica.
      Read more

      Arctia Offshore
    • Libas
      The Libas, delivered 2004, is a combined purse seiner and trawler designed by Wärtsilä Ship Design for the future needs of the global pelagic fleet.
      Read more

      Libas
