    Case study:

    VS 6112 Pelagic Trawler

Lower CAPEX, OPEX and Emissions

Proven savings with Wärtsilä propulsion solution

CAPEX

up to 89.000 € saving on machinery compared to the competition. (Machinery including SCR, Propulsion train, Gensets, Propulsion engine)

OPEX

up to 120.000 € saving* on annual machinery related costs (incl. SCR operating costs, maintenance costs, lubrication oil costs and fuel costs) compared to the competition

Emissions

Compared to competition
- up to - 2,7% CO2
- up to - 2,7 % SOX
- up to - 0,2 % PM

* Values are for budgetary purposes only
* Price assumptions: MDO: 650 €/ton – LHV 42,700 kJ/kg, LUBE OIL: 2300 €/ton
  • Vessel main data

  • Operational profile

  • Wärtsilä Machinery concept

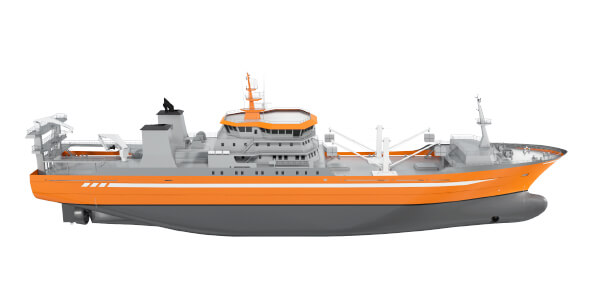

Vessel main data

Vessel main data
Length o.a. 86,3 m
Breath 17,6 m
Speed 17 kn
Main engine 5220 kW
Propeller 7500 kW
Gear & PTO 5220 kW & 2880 kW
Aux engine 2600 kW
Nozzle HR
Fishing-vessel-case-study-wärtsilä

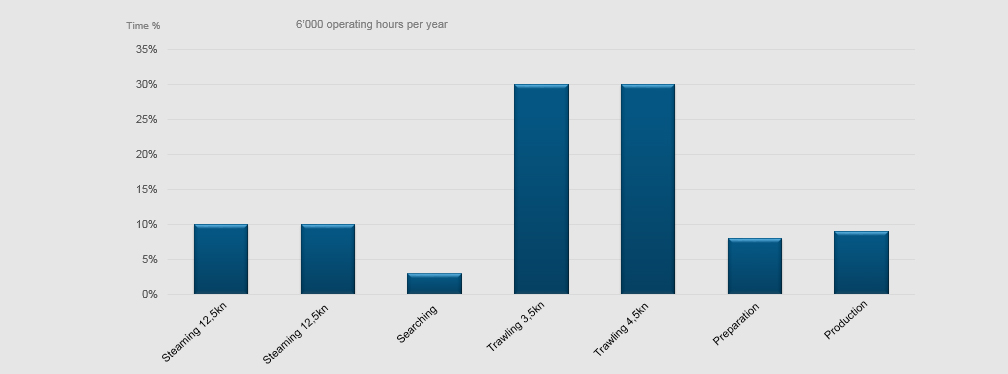

Operational profile

Fishing-vessel-case-study-operation-profile

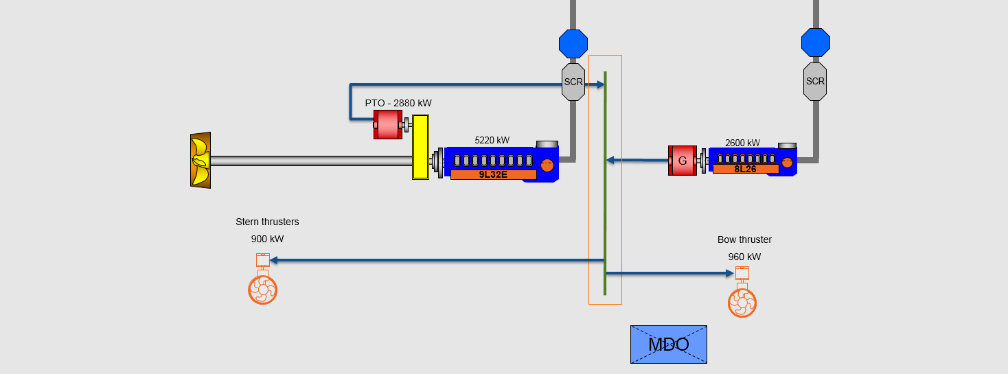

Wärtsilä Machinery concept

Wärtsilä machinery concept
