Wärtsilä 31DF multi-fuel power plant

Wärtsilä 31DF

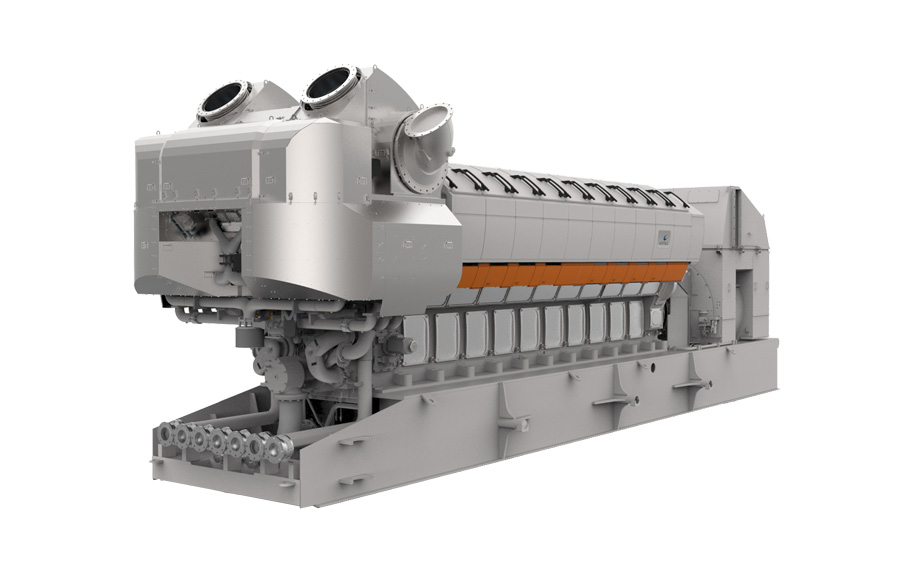

The most efficient Wärtsilä 31DF, is a four-stroke multi-fuel engine generating set.

The record-breaking efficiency and fuel adaptability of Wärtsilä 31DF has been designed for applications where energy security is significantly important and where gas network is still forthcoming. Its modular design ensures easy adaption for the engine to run on renewable fuels. Wärtsilä engine power plants can be delivered both as EPC and Equipment Delivery contracts.

Key benefits

World-class open-cycle efficiency
Synchronises with the grid within 30 seconds from start command

Ensures energy security in operation through fuel flexibility and seamless switching between fuels
Can be easily adapted to run on synthetic renewable fuels

Supports off-grid operation and provides fast black start capabilities
Unparalleled load following capabilities and high part load efficiency

Our proudest numbers

2 min

to full load

50.2%

Electrical efficiency

45+

million running hours with Wärtsilä dual fuel technology

The details

Technical data

Engine generating set
Cylinder configurations	20 V
Cylinder bore	310 mm
Piston stroke	430 mm
Engine speed	750 rpm (50 Hz), 720 rpm (60 Hz)
Performance *
	WÄRTSILÄ 31DF, GAS	WÄRTSILÄ 31DF, LFO
Rated electrical power (kW)	10 777 (50 Hz) 11 377 (60 Hz)	10 777 (50 Hz) 11 377 (60 Hz)
Electrical efficiency (%)	50.2 (50 Hz) 50.2 (60 Hz	47.9 (50 Hz) 47.9 (60 Hz)
Heat rate (kJ/kWh)	7 170 (50 Hz) 7 175 (60 Hz	7 510 (50 Hz) 7 515 (60 Hz
Loading and unloading
	Connected to grid	Full load
Regular start time (min:sec)	00:30	< 5
Fast start time (min:sec)	00:30	< 2
Stop time (min)	< 2
Ramp rate (hot, load/min)	> 100%
Minimun Load
Unit level	20%
Plant level	1%

* Rated electrical power and electrical efficiencies are given at generator terminals at 100kPa ambient pressure, 25°C suction air temperature and 30% relative humidity, and without engine driven pumps. Power factor 1.0 (site). Electrical efficiency with 5% tolerance. Site conditions, fuel and applicable emission limits may have an impact on performance figures. Please contact Wärtsilä for project-specific performance data. Catalyst systems are designed based on project specific requirements. Certain fuel components are poisonous for catalyst elements. Maximum amount of these components to be limited in the fuel in applications where catalyst system is installed.

Disclaimer: The information contained herein is provided for informational purposes only and may not be incorporated, in whole or in part, into any agreement or proposal. No representation of any kind is made in respect of any information contained herein and Wärtsilä expressly disclaims any responsibility for, and does not guarantee, the correctness or the completeness of the information. The calculations and assumptions included in the information do not necessarily take into account all the factors that could be relevant in a particular case. Information herein shall not be construed as a guarantee or warranty of the performance of any Wärtsilä technology, equipment or installation.
