Wärtsilä 46 Performance upgrade – TPL 73-A4X + short overlap Miller

The Wärtsilä 46 Performance upgrade – TPL 73-A4X + short overlap Miller combines the latest turbocharger technology with Miller inlet valve timing to improve turbocharger efficiency, reducing specific fuel oil consumption (SFOC) and therefore emissions and OPEX.

The upgrade involves replacing the performance-related parts of the engine’s TPL 73-A turbocharger and adjusting the inlet valve timing. The camshaft pieces that operate the inlet and exhaust valves are also replaced to allow the engine to take full advantage of the increased charging pressure provided by the upgraded turbocharger.

The upgrade reduces operating costs due to reduced SFOC and by extending the maintenance interval for the turbocharger’s rotating parts from 50,000 to 75,000 (SIKO) running hours and resetting the lifetime of the camshaft. CO2 emissions are also reduced as a result of the lower SFOC, helping ship owners and operators to comply with increasingly strict environmental regulations.

The Wärtsilä 46 Performance upgrade is EIAPP certified.

    Technical info

    The upgrade is a complete package that consists of the following:

    • Turbocharger upgrade from TPL73-A30 to TPL73-A4X
    • Inlet valve timing change
    • Engine check and tuning to verify current fuel injection timing and ensure that parameters that affect, for example, emissions are correct
    • A new technical file with valid EIAPP certification
    Benefits
    • Reduce SFOC by up to 3.5 g/kWh
    • Increase turbocharger efficiency by 3–4%
    • Reduce operational costs
    • Cut carbon emissions
    Application
    The upgrade is EIAPP certified and suitable for Wärtsilä 46 engines with a 16:1 compression ratio, cylinder output 1050 kW/cyl – 1070 kW/cyl, that are equipped with the TPL73 turbochargers. These chargers are typically used in W6L46 and W12V46 engines. The upgrade can also be performed on other cylinder configurations when combined with onboard EIAPP verification.
    This upgrade is a great investment in the future of the engine – one that addresses the economic and environmental issues simultaneously by reducing fuel consumption and therefore emissions.
    Jyrki Salo, Senior Product Manager, Wärtsilä 46 engines

    Boost engine performance with a Wärtsilä Performance upgrade

    Wärtsilä Performance upgrades are available for a variety of engine types. The upgrades boost engine performance by optimising the combustion process and tuning the engine to the most frequently used operating range.

    Our performance upgrade packages are tailored packages that make use of modern higher efficiency turbochargers, and when combined with adjusted inlet valve timing and engine tuning the engine’s performance is maximised with regards to fuel oil consumption and generated emissions. This will lower operational costs and aid in complying with tightening emission limits, all the while increasing operational efficiency.

    The scope of the package is determined case by case according to customer requirements. Engine documentation update (i.e. EIAPP amendment), in case needed, is part of Wärtsilä’s delivery scope.

    Would you like more information on a Wärtsilä Performance upgrade?
    Please fill in the contact form and select "Get in touch with sales" and our sales will get right back to you.




    Related products

    Articles

    A well-timed boost gives Wärtsilä 46...

    Prosperity follows electricity, and one small island is taking steps to develop its economy and its power...
    22 January 2021
    • Article

    Shipowners should use pandemic downtime...

    The coronavirus crisis has seen different segments in the maritime industry retrofitting their vessels...
    19 November 2020
    • Article

    Downloads

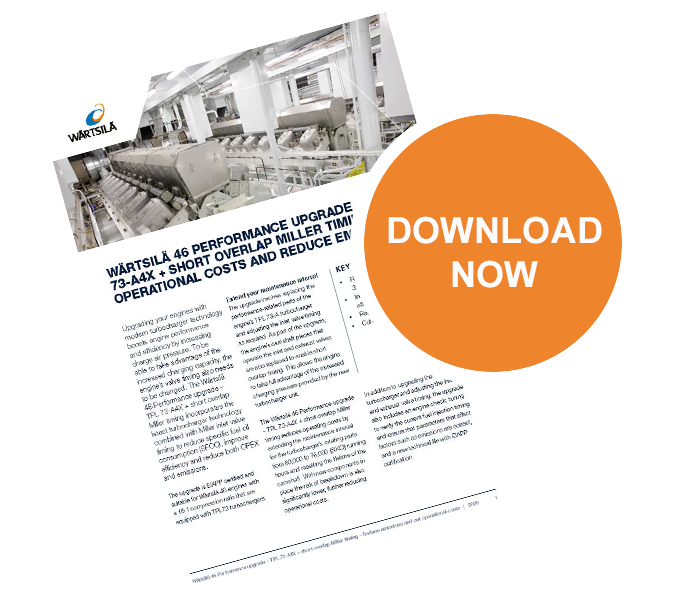

    Wärtsilä 46 Performance
