Expert Services

Our experts and our portable measuring and data acquisition equipment can be dispatched worldwide.

The various measurements are supported by our calculation Software for:
• Torsional Vibration Calculations (Torsvib)
• Engine and Shaft dynamics (EnDyn)
• Engine Performance (Win GTD)

The recorded data can be visualized with Fluke Scope View and Dasilab.

High quality reporting is provided with every measuring job containing actual findings and possible counter measures for improvement.

YOUR BENEFITS
You can have our wide range of measuring services support;
verification of calculated temperature, pressure, vibration levels, troubleshooting, engine performance evaluation and preventive maintenance planning

OUR SERVICES
• Torsional vibration measurements
• Axial (structural) vibration measurements
• Portable 3D measurements (metrology)
• Portable cylinder liner roundness measurement
• Noise Measurements
• Stress Measurements (strain gauge)
• Shaft power measurements
• Fuel consumption (coriolis massflowmeters)
• Oil and Water ultrasonic flow measurement
• Cylinder pressure measurements (gas and diesel)
• Data acquisition: temperature, pressure, signals

All equipment is portable and can be installed on site.
By moving the receiver to different positions, it is possible to measure the height deviation to the reference line.

The bore centre is determined by rotating the analogue distance gauge attached to the receiver around the bore. In case a full rotation is not possible due to some obstruction, the centre can be also determined by a smaller rotation angle.

Maximum measuring distance is 30m with a laser accuracy of 0.005mm/m.

Bore laser alignment measurements can be combined with other alignment measurements, such as, bearing reaction measurements (Jackup tests) crankshaft deflection measurements, Pianowire or laser straightness measurements in order to get the overall picture of the installation.

YOUR BENEFITS
High accuracy fast alignment measurements are used to verify theoretically calculated values.
Laser alignment gives correct results even when the vessel is under floating condition.
We are able to provide full alignment packages including bore alignment measurements.

OUR SERVICES
• Alignment check of bearing channel
• Measurement of bore shape and inclination
• Measurement of cylinder liner roundness
• Alignment engine to tailshaft bearings

Plane measurements: The laser can be rotated 360 degrees by a rotation mirror. By moving the receiver within the plane, the distance relative to the rotation plane is recorded.

Axis Plane Alignment is possible after removing the rotating mirror. The laser direction becomes rectangular to the rotation plane.

The three dimensional shape of the measured plane can be visualized.
Straightness measurements are possible up to 30meters and flatness measurements are possible up to 10 meters.

Flatness measurements can provide corrections for In-Situ machining.

YOUR BENEFITS
High accuracy fast alignment measurements are used to verify theoretically calculated values.
Laser alignment gives correct results even when the vessel under in floating condition.
We are able to provide the full alignment packages including plane alignment measurements.

OUR SERVICES
Straightness measurement of one axis:
• Engine bedplate SAG measurement
• Guiderail straightness

Flatness measurement of a plane:
• Bedplate height alignment
• Crane pedestal alignment measurement
• Inspection of machined large components
• Engine foundation measurement
• Rectangular alignment axis-plane

Steering gear-propeller shaft alignment

OUR CAPABILITIES
- Measurement of shaftline shape by use of laser, V-blocks and angle transmitters
- By moving the receiver to different positions it is possible to measure the height deviation from the reference laser line to the shaft surface.
- The Shaft centre is determined by measuring the shaft diameter.
- Different shaft diameters can be compensated by shims.

A coupling condition check is carried out by attaching a laser and receiver on each flange. By rotating both flanges by several degrees the SAG and GAP values are calculated.

YOUR BENEFITS
High accuracy fast alignment measurements are used to verify theoretically calculated values.
Laser alignment gives correct results even when the vessel under in floating condition. We are able to provide the full alignment packages including shaft alignment, measurements.

OUR SERVICES
Shaftline straightness measurement
Camshaft alignment
Crankshaft straightness

Coupling measurement Sag & Gap:
• Hot coupling condition check between Generator Engine and Alternator
• Alignment of every rotating flange connection

OUR CAPABILITIES

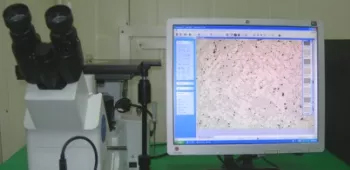

Metallurgical & Replica Analysis: Metallurgical microscope (50x – 1’000x magnification) and image analysis software is used to report the component condition. A portable microscope camera (up to 300x magnification) and surface replicas enable on site inspections of components that cannot be moved to the laboratory.

Mechanical Testing: Mechanical properties of component can be tested according to ISO and ASTM standards.

Non Destructive Examination: Liquid Penetration, Magnetic Particle and Ultrasonic testing can help to identify defects before they cause problems without destroying the component or sample.

Root Cause Analysis(RCA): Documentation of the RCA is done by use of Apollo RCA Software.

YOUR BENEFITS
Dedicated material experts who have access to Wärtsilä’s know-how, drawings and specifications provide metallurgical and damage investigations within a short period of time by using modern well maintained equipment.

OUR SERVICES
Metallurgical analysis:
• Specimen preparation, cutting, hot embedding
• Specimen polishing, etching
• Microstructure analysis with metallurgical software
• High definition pictures up to 1’000x magnification

Mechanical testing:
• Tensile strength test(Force – Elongation graph)
• Impact test: Charpy
• Hardness (Rockwell, Brinell, Vickers, Micro-Vickers)
• Hardness profile (Micro-Vickers)

Chemical analysis:
• Optical emission spectrometer element analysis
• SEM - EDS material analysis

Replica analysis
Non destructive examination: UT, PT, MT
Root Cause Analysis Reports

Our Quality Department operating the 3D coordinate measuring machine has acquired wide experience in measuring reconditioned and new components, such as pump components, injection components and large engine parts.  We offer our measuring services to external customers for their quality assurance, claim or damage investigation.
Located in a climate-controlled room with a 3 tonne overhead crane, supported by air dampers, our 3D measuring machine achieves the highest level of precision.

YOUR BENEFITS
- Simple and easy access to a large 3D coordinate measuring machine.
- Consultations with our measuring experts regarding the measuring procedure and results.
- High quality measuring reports with drawings, dimensions and measuring results available.

OUR SERVICES
Measuring Range:
X: 1’200 mm (Horizontal Axis)
Y: 2’000 mm (Horizontal Axis)
Z: 1’000 mm (Vertical Axis)

Resolution: 0.005 mm

Maximal weight for measuring object is limited to 2’500 kg.

Our trained and certified experts can carry out accurate thermography measurements and report results with recommendations for immediate rectification. Rectifications can also be carried out by our electrical experts upon availability of required spare parts.
A thermal imaging camera is a reliable non contact instrument which is able to scan and visualize the temperature distribution of entire surfaces of machinery and electrical equipment quickly, accurately and safely.

YOUR BENEFITS
Quick identification of machinery installations for fulfilment of the SOLAS requirements in regard to surface temperatures and shielding which can be carried out without disturbance of ongoing machinery operation.
A bad connection results in increased resistance and the current flow generates excessive temperature that can be detected with infrared thermography.
If not rectified, this connection or component might break and cause much bigger damage.

OUR SERVICES
• SOLAS conformity check (220^oC)
• Detection of overheated electrical connections and components
• Detection of overheated bearings
• Level monitoring of storage and sludge tanks

The technical support for you is managed in an efficient and systematic way in order to solve technical problems. Our primary focus is on establishing customer confidence and satisfaction. The long-term strategy is to provide proactive customer service based on customer feedback and accumulated experience.
Every installation, not only under warranty but during its complete lifetime has one contact person within Wärtsilä.
Spare parts are readily available and kept in our Busan warehouse based on customer installation specification. Our logistics team operates 24/7 to ensure on-time delivery.

YOUR BENEFITS
We are committed in taking excellent care of you by providing technical support and by managing warranty claims in a professional manner. By knowing our products and your machinery history and specification we are your ideal partner to support you technically and logistically during the complete lifespan of your installations.

OUR SERVICES
• 24/7 Service call support (+82 17 546 0202)
• Technical support
• Logistics support
• Warranty management support
